Brake Shoe

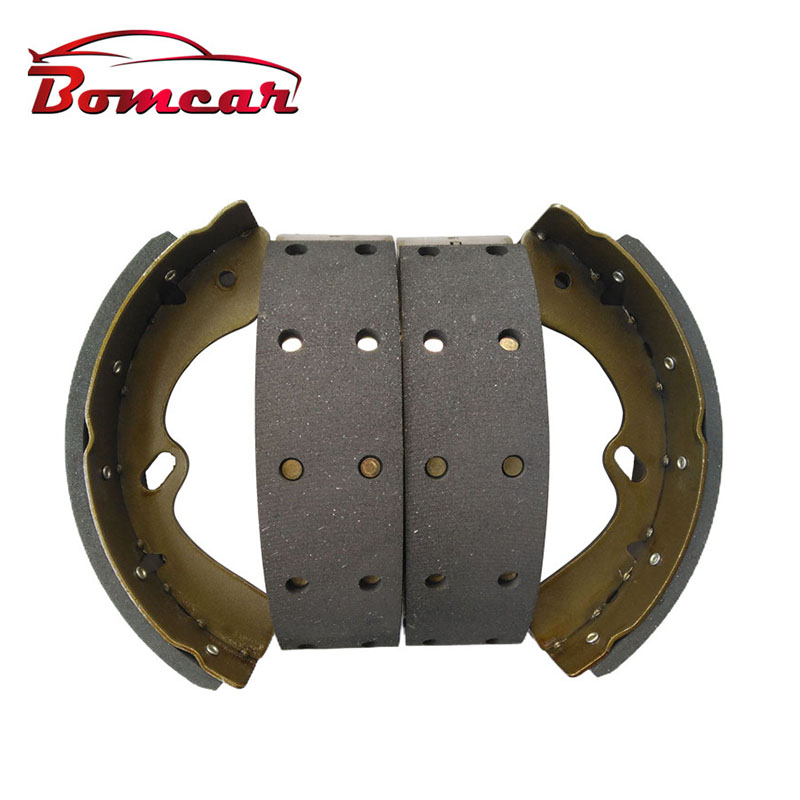

A brake shoe is a critical component of a drum brake system in vehicles. It is a curved metal plate that is lined with friction material, typically made of asbestos-free organic or semi-metallic compounds. Brake shoes are found in pairs and are positioned inside the brake drum, which is mounted on the wheel hub.

Here are some key features and functions of brake shoes:

1. Friction Surface: The outer surface of the brake shoe is lined with a friction material. When the brake pedal is pressed, hydraulic pressure is applied to force the brake shoes against the inner surface of the brake drum, creating friction and generating the braking force that slows down or stops the vehicle.

2. Mounting and Actuation: Brake shoes are connected to the brake system using an anchor pin or a brake shoe retaining clip. When the hydraulic pressure is applied, the brake shoes are forced outwards and press against the drum, creating friction and stopping the rotation of the wheels.

3. Heat Dissipation: Brake shoes absorb and dissipate the heat generated during braking. The curved shape of the brake shoes helps in the efficient dissipation of heat, preventing overheating and potential brake fade.

4. Brake Adjustment: In some vehicles, brake shoes are designed with an automatic or manual adjustment mechanism to compensate for wear over time. This ensures that the shoes maintain the proper clearance with the brake drum for optimal braking performance.

5. Durability and Wear: Brake shoes are designed to withstand the high heat and friction generated during braking. However, over time, the friction material on the brake shoes wears down and needs to be replaced to maintain effective braking performance. Manufacturers typically specify the recommended lifespan or wear limits for brake shoes.

6. Brake Shoe Components: Brake shoes consist of several components, including the metal backing plate, the friction lining material, and the brake shoe return springs. These components work together to ensure proper function and alignment of the brake shoes within the brake drum.

7. Service and Replacement: When brake shoe replacement is necessary, it is essential to use high-quality brake shoes that meet the vehicle manufacturer's specifications. It is recommended to have brake shoes inspected and replaced by a qualified automotive professional to ensure proper installation and alignment.

Proper maintenance and regular inspections of brake shoes are crucial for safe and reliable braking performance. Signs of worn or damaged brake shoes may include reduced braking effectiveness, squealing or grinding noises during braking, or uneven wear on the brake shoe lining. If you notice any of these signs, it is important to have the brake system inspected and serviced promptly.

It's worth noting that the design and specifications of brake shoes can vary depending on the vehicle make, model, and brake system type. Consult the vehicle manufacturer's recommendations and seek the assistance of a qualified automotive professional for specific information and guidance on brake shoe maintenance and replacement for your particular vehicle.
